Create Chaos Mesh Workflow

Introduction to Chaos Mesh Workflow

When you use Chaos Mesh to simulate real system faults, continuous validation is always a need. You might want to build a series of faults on the Chaos Mesh platform, instead of performing individual Chaos injections.

To meet this need, Chaos Mesh provided Chaos Mesh Workflow, a built-in workflow engine. Using this engine, you can run different Chaos experiments in serial or parallel to simulate production-level errors.

Currently, Chaos Mesh Workflow supports the following features:

• Serial Orchestration
• Parallel Orchestration
• Customized tasks
• Conditional branch

Typical user scenarios:

• Use parallel orchestration to inject multiple NetworkChaos faults to simulate complex web environments.
• Use serial orchestration to perform health checks and use the conditional branch to determine whether to perform the remaining steps.

The design of Chaos Mesh Workflow is, to some extent, inspired by Argo Workflows. If you are familiar with Argo Workflows, you can also quickly get started with Chaos Mesh Workflow.

More workflow examples are available in the Chaos Mesh GitHub repository.

Create a workflow using Chaos Dashboard

Step 1. Open Chaos Dashboard

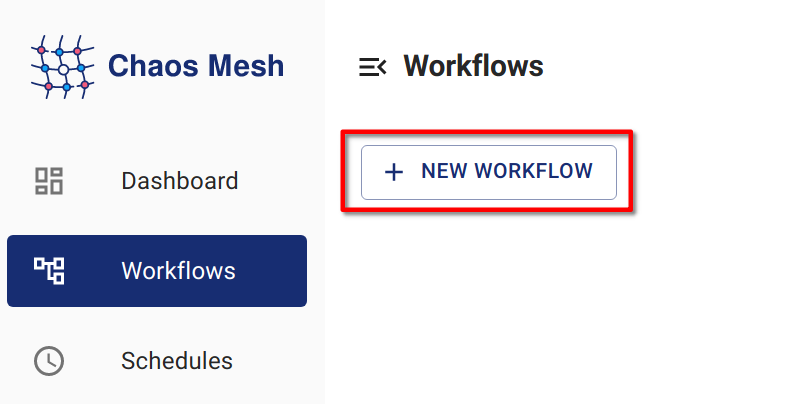

Click NEW WORKFLOW.

New Workflow

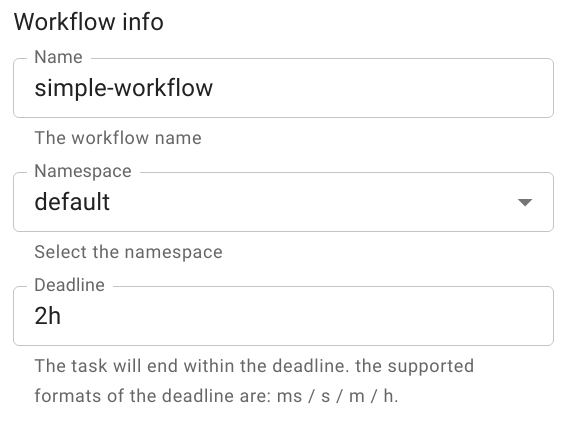

Step 2. Setup basic information of the workflow

Workflow Info

Step 3. Configure the nodes of the workflow

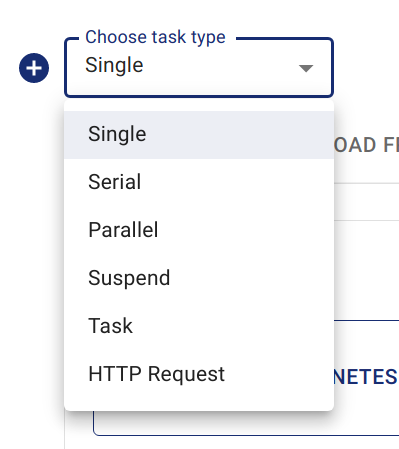

1. Select an option under Choose task type according to your needs.

   In this example, the "Single” type is selected as the task type.

   note

   Chaos Dashboard automatically creates a serial node named "entry" as the entry point for this workflow.



   Choose Task Type

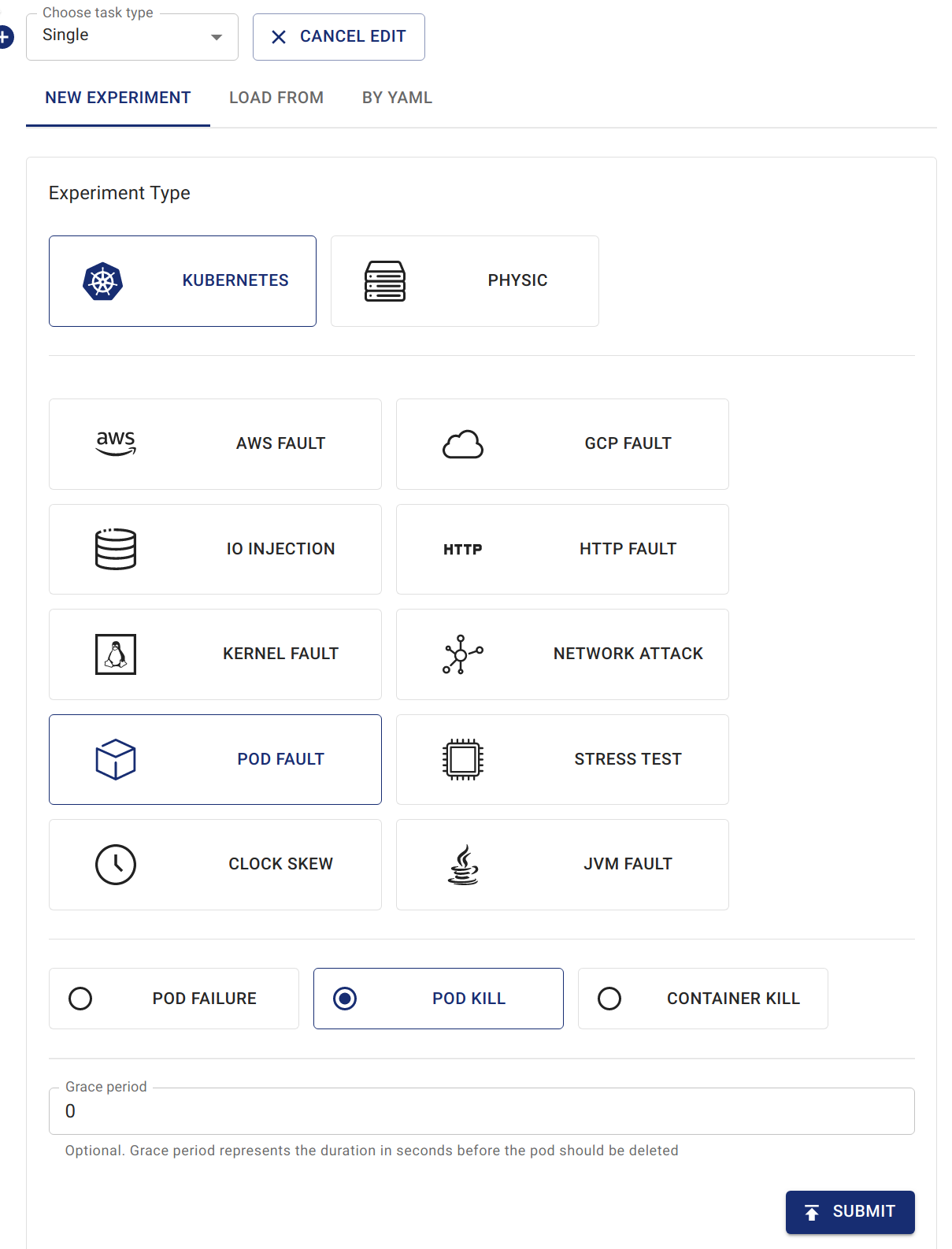

2. Fill out the experiment information.

   The configuration method is the same as creating a normal chaos experiment. For example, you can set up a "POD KILL" type of "PodChaos" named kill-nginx.



   Create podkill in Workflow

Step 4. Submit the workflow

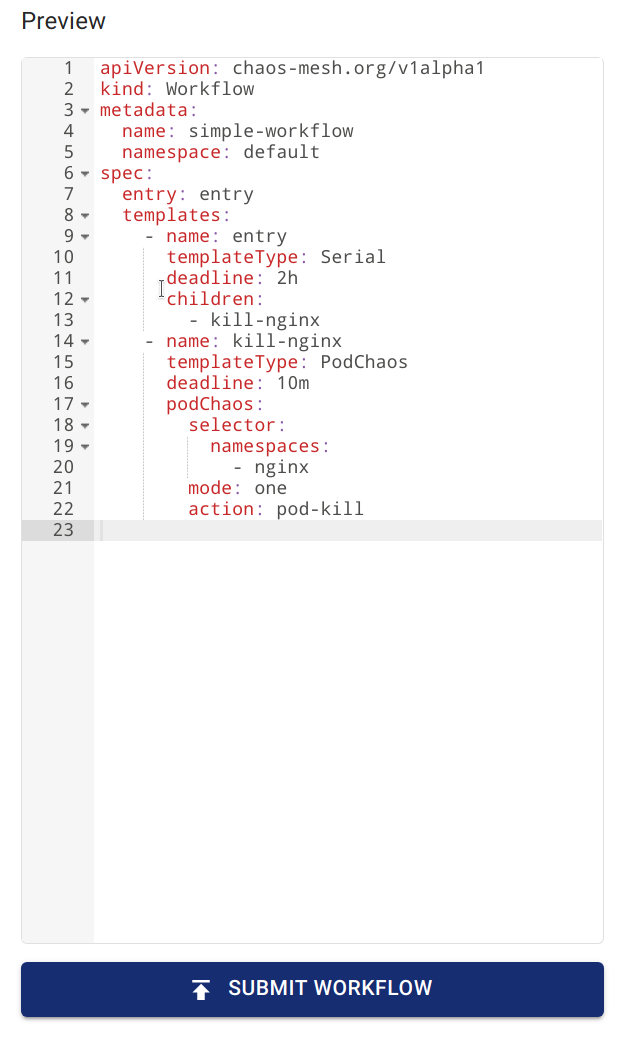

You can check workflow definition through Preview, and then click the SUBMIT WORKFLOW to create the workflow.

Submit Workflow

Create a workflow using a YAML file and kubectl

Similar to various types of Chaos objects, workflows also exist in a Kubernetes cluster as a CRD. You can create a Chaos Mesh workflow using kubectl create -f <workflow.yaml>. The following command is an example of creating a workflow. Create a workflow using a local YAML file:

kubectl create -f <workflow.yaml>

Create a workflow using a YAML file from the network:

kubectl create -f https://raw.githubusercontent.com/chaos-mesh/chaos-mesh/master/examples/workflow/serial.yaml

A simple workflow YAML file is defined as follows. In this workflow, StressChaos, NetworkChaos, and PodChaos are injected:

apiVersion: chaos-mesh.org/v1alpha1
kind: Workflow
metadata:
  name: try-workflow-parallel
spec:
  entry: the-entry
  templates:
    - name: the-entry
      templateType: Parallel
      deadline: 240s
      children:
        - workflow-stress-chaos
        - workflow-network-chaos
        - workflow-pod-chaos-schedule
    - name: workflow-network-chaos
      templateType: NetworkChaos
      deadline: 20s
      networkChaos:
        direction: to
        action: delay
        mode: all
        selector:
          labelSelectors:
            'app': 'hello-kubernetes'
        delay:
          latency: '90ms'
          correlation: '25'
          jitter: '90ms'
    - name: workflow-pod-chaos-schedule
      templateType: Schedule
      deadline: 40s
      schedule:
        schedule: '@every 2s'
        type: 'PodChaos'
        podChaos:
          action: pod-kill
          mode: one
          selector:
            labelSelectors:
              'app': 'hello-kubernetes'
    - name: workflow-stress-chaos
      templateType: StressChaos
      deadline: 20s
      stressChaos:
        mode: one
        selector:
          labelSelectors:
            'app': 'hello-kubernetes'
        stressors:
          cpu:
            workers: 1
            load: 20
            options: ['--cpu 1', '--timeout 600']

In the above YAML template, the templates fields define the steps of the experiment. The entry field defines the entry of the workflow when the workflow is being executed.

Each element in templates represents a workflow step. For example:

name: the-entry
templateType: Parallel
deadline: 240s
children:
  - workflow-stress-chaos
  - workflow-network-chaos
  - workflow-pod-chaos

templateType: Parallel means that the node type is parallel. deadline: 240s means that all parallel experiments on this node are expected to be performed in 240 seconds; otherwise, the experiments time out. children means the other template names to be executed in parallel.

For example:

name: workflow-pod-chaos
templateType: PodChaos
deadline: 40s
podChaos:
  action: pod-kill
  mode: one
  selector:
    labelSelectors:
      'app': 'hello-kubernetes'

templateType: PodChaos means that the node type is PodChaos experiments. deadline: 40s means that the current Chaos experiment lasts for 40 seconds. podChaos is the definition of the PodChaos experiment.

It is flexible to create a workflow using a YAML file and kubectl. You can nest parallel or serial orchestrations to declare complex orchestrations, and even combine the orchestration with conditional branches to achieve a circular effect.

Field description

Workflow field description

Parameter	Type	Description	Default value	Required	Example
entry	string	Declares the entry of the workflow. Its value is a name of a template.	None	Yes
templates	[]Template	Declares the behavior of each step executable in the workflow. See Template field description for details.	None	Yes

Template field description

Parameter	Type	Description	Default value	Required	Example
name	string	The name of the template, which needs to meet the DNS-1123 requirements.	None	Yes	any-name
type	string	Type of template. Value options are Task, Serial, Parallel, Suspend, Schedule, AWSChaos, DNSChaos, GCPChaos, HTTPChaos, IOChaos, JVMChaos, KernelChaos, NetworkChaos, PodChaos, StressChaos, and TimeChaos, StatusCheck.	None	Yes	PodChaos
deadline	string	The duration of the template.	None	No	'5m30s'
children	[]string	Declares the subtasks under this template. You need to configure this field when the type is Serial or Parallel.	None	No	["any-chaos-1", "another-serial-2", "any-shcedue"]
task	Task	Configures the customized task. You need to configure this field when the type is Task. See the Task field description for details.	None	No
conditionalBranches	[]ConditionalBranch	Configures the conditional branch which executes after customized task. You need to configure this field when the type is Task. See the Conditional branch field description for details.	None	No
awsChaos	object	Configures AWSChaos. You need to configure this field when the type is AWSChaos. See the Simulate AWS Faults document for details.	None	No
dnsChaos	object	Configures DNSChaos. You need to configure this field when the type is DNSChaos. See the Simulate DNS Faults document for details.	None	No
gcpChaos	object	Configures GCPChaos. You need to configure this field when the type is GCPChaos.See the Simulation GCP Faults document for details.	None	No
httpChaos	object	Configures HTTPChaos. You need to configure this field when the type is HTTPChaos. See the Simulate HTTP Faults document for details.	None	No
ioChaos	object	Configure IOChaos. You need to configure this field when the type is IOChaos. See the Simulate File I/O Faults document for details.	None	No
jvmChaos	object	Configures JVMChaos. You need to configure this field when the type is JVMChaos. See the Simulate JVM Application Faults document for details.	None	No
kernelChaos	object	Configure KernelChaos. You need to configure this field when the type is KernelChaos. See the Simulate Kernel Faults document for details.	None	No
networkChaos	object	Configures NetworkChaos. You need to configure this field when the type is NetworkChaos. See the Simulate Network Faults document for details.	None	No
podChaos	object	Configures PodChaos. You need to configure this field when the type is PodChaos. See the Simulate Pod Faults document for details.	None	No
stressChaos	object	Configures StressChaos. You need to configure this field when the type is StressChaos. See the Simulate Heavy Stress on Kubernetes document for details.	None	No
timeChaos	object	Configures TimeChaos. You need to configure this field when the type is TimeChaos. See the SImulate Time Faults document for details.	None	No
schedule	object	Configures Schedule. You need to configure this field when the type is Schedule. See the Define Scheduling Rules document for details.	None	No
statusCheck	object	Configures StatusCheck. You need to configure this field when the type is StatusCheck. See the StatusCheck in Workflow document for details.	None	No
abortWithStatusCheck	bool	Configures whether abort the Workflow when StatusCheck is failed. You can configure this field when the type is StatusCheck.	false	No	true

note

When creating a Chaos with a duration in the workflow, you need to fill the duration in the outer deadline field instead of using the duration field in Chaos.

Task field description

Parameter	Type	Description	Default value	Required	Example
container	object	Defines a customized task container. See Container field description for details.	None	No
volumes	array	If you need to mount a volume in a customized task container, you need to declare the volume in this field. For the detailed definition of a volume, see the Kubernetes documentation - corev1.Volume.	None	No

ConditionalBranch field description

Parameter	Type	Description	Default value	Required	Example
target	string	The name of the template to be executed by the current conditional branch.	None	Yes	another-chaos
expression	string	The type is a boolean expression. When a customized task is completed and the expression value is true, the current condition branch is executed. When this value is not set, the conditional branch will be executed directly after the customized task is completed.	None	No	exitCode == 0

Currently, two context variables are provided in expression:

• exitCode means the exit code for a customized task.
• stdout indicates the standard output for a customized task.

More context variables will be added in later releases.

Refer to this document write expression expressions.

Container field description

The following table only lists the commonly used fields. For the definitions of more fields, see Kubernetes documentation - core1.Container.

Parameter	Type	Description	Default value	Required	Example
name	string	Container name	None	Yes	task
image	string	Image name	None	Yes	busybox:latest
command	[]string	Container commands	None	No	["wget", "-q", "http://httpbin.org/status/201"]
